Postby LongRunner » July 26th, 2019, 7:09 am

These aren't as outright horrible as others mentioned, but I still have some doubt about their legitimacy:

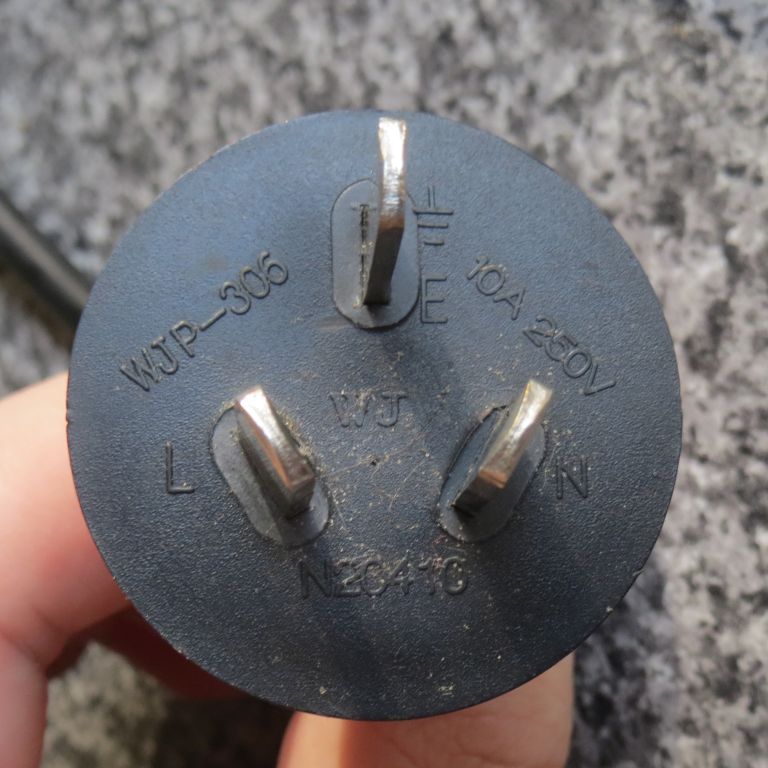

WJ plug 1.JPG
WJ plug 1.JPG (94.92 KiB) Viewed 27885 times
WJ plug 2.JPG
WJ plug 2.JPG (82.91 KiB) Viewed 27885 times

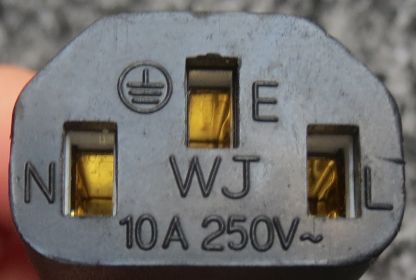

WJ C13 1.JPG
WJ C13 1.JPG (66.56 KiB) Viewed 27885 times
WJ C13 2.JPG
WJ C13 2.JPG (85.13 KiB) Viewed 27885 times
WJ C13 3.JPG
WJ C13 3.JPG (31.45 KiB) Viewed 27885 times

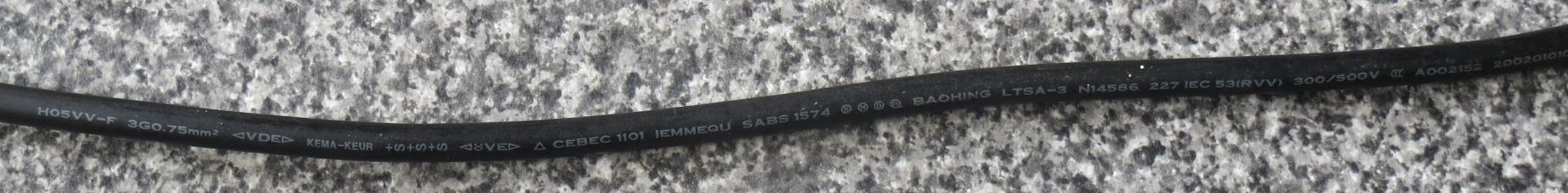

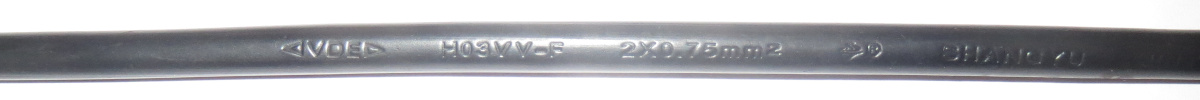

WJ flex.JPG
The "LTSA" designation, as I understand it, refers to a light-duty flex (H03VV-F, or H03VVH2-F in the case of "LTSA-2F"); for ordinary-duty (H05VV-F), it should be "GTSA" (or "GTSA-2F" for H05VVH2-F).
WJ flex.JPG (98.1 KiB) Viewed 27885 times

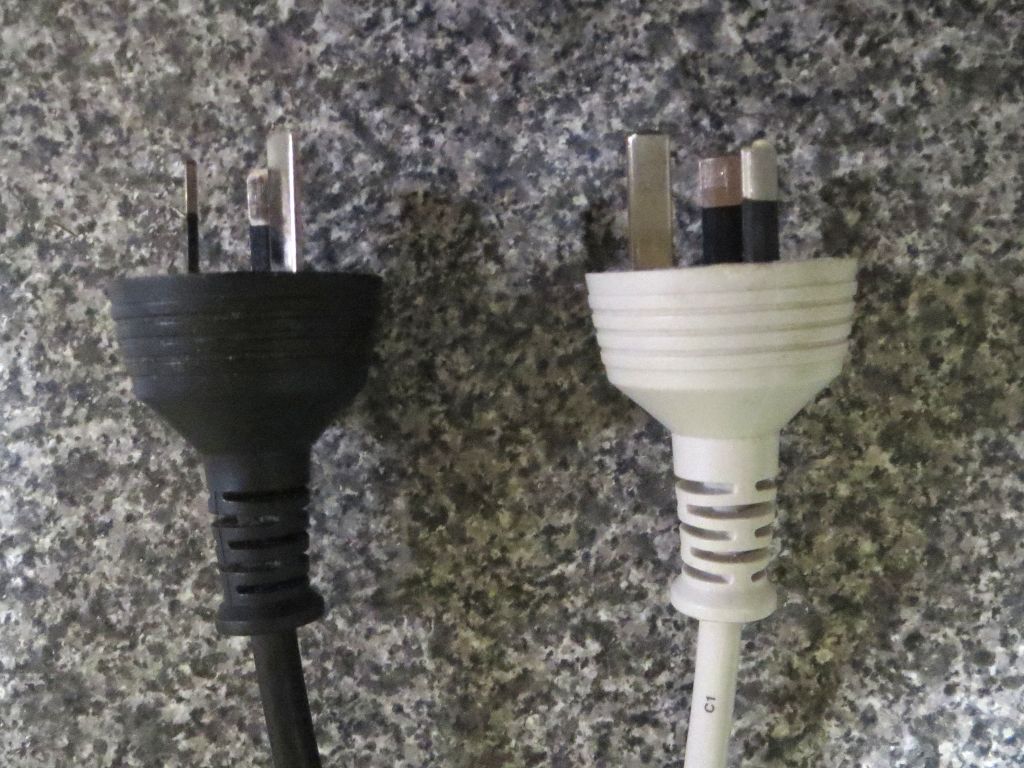

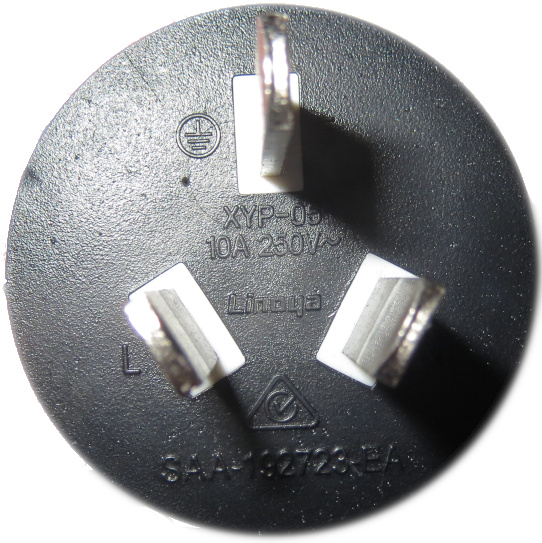

WJ versus Phino 1.JPG
WJ versus Phino 1.JPG (152.21 KiB) Viewed 27885 times
WJ versus Phino 2.JPG
WJ versus Phino 2.JPG (138.31 KiB) Viewed 27885 times
This one, if I recall correctly, came with a Palsonic TV set some years ago. The design of the plug appears to be copied from Phino (which can also be found rebranded "Powermaster", like the off-white cord shown here), although the C13 end is dissimilar. It just about survived a 10A load, although the plug pins got very hot. It's quite a stiff cord, as were two I had with the same plug but in H03VV-F and with a different C13 end. I've now cut it apart to recover the copper (27 grams of it, between the 3 cores)…

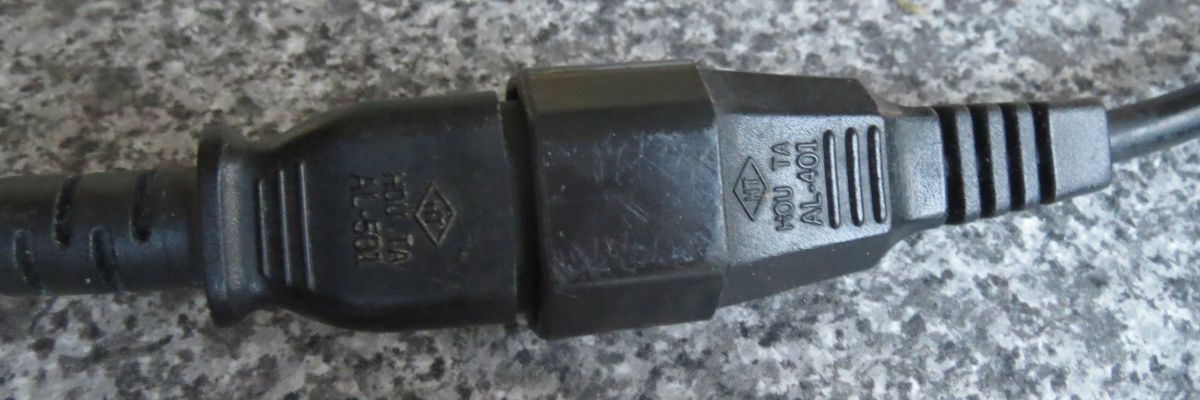

Hou Ta 1.JPG
Hou Ta 1.JPG (82.1 KiB) Viewed 27885 times
Hou Ta 2.JPG
Hou Ta 2.JPG (102.4 KiB) Viewed 27885 times

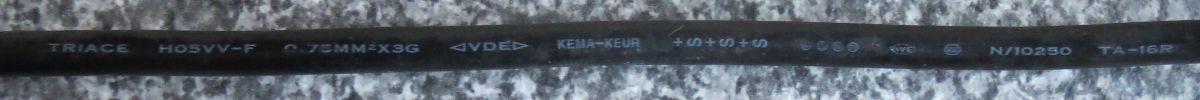

Hou Ta (TriAce) flex.JPG
Hou Ta (TriAce) flex.JPG (30.9 KiB) Viewed 27885 times
I don't know what device this one came with. It seems OK under load (some warmth at the ends, but not dangerously hot). The connector designs actually match those shown on the website of Hou Ta, so maybe it's just a real cord of less-than-stellar quality.

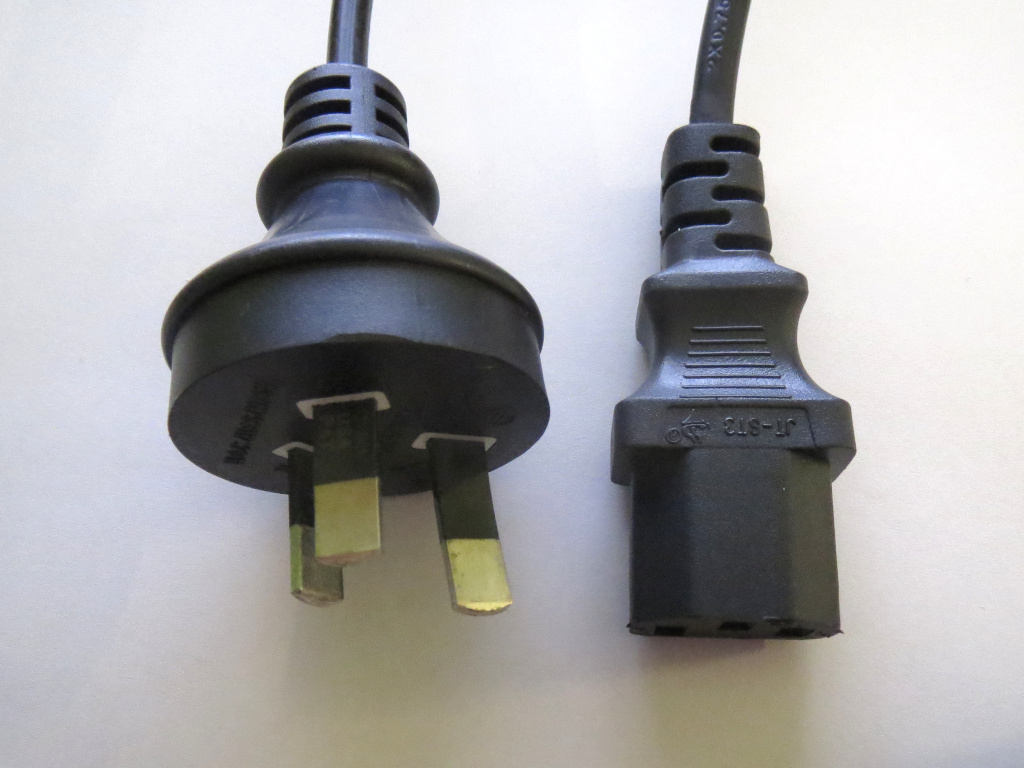

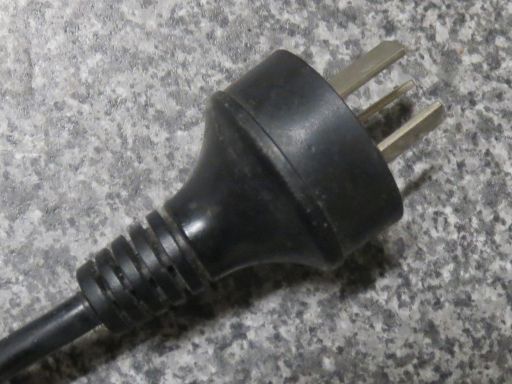

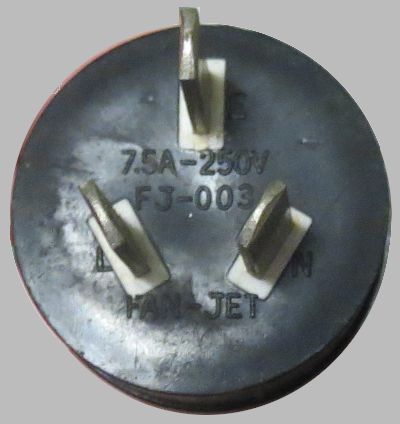

Fan-Jet plug 1.JPG
The text positioning is a tad sloppy (being partly cut off by the frame), but no catastrophe there.
Fan-Jet plug 1.JPG (35.37 KiB) Viewed 27885 times

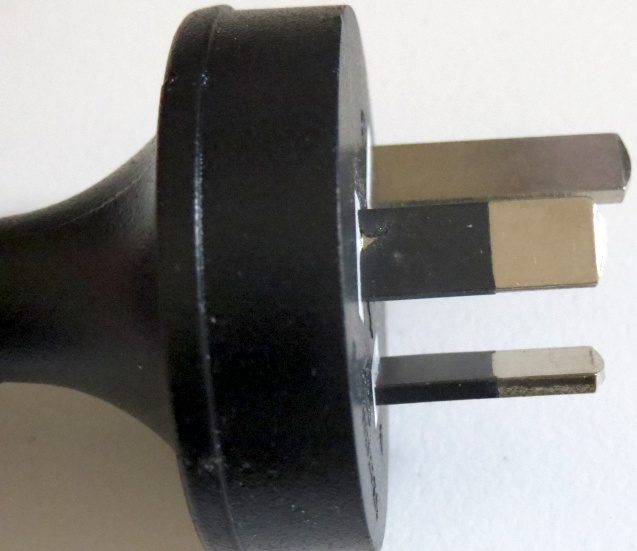

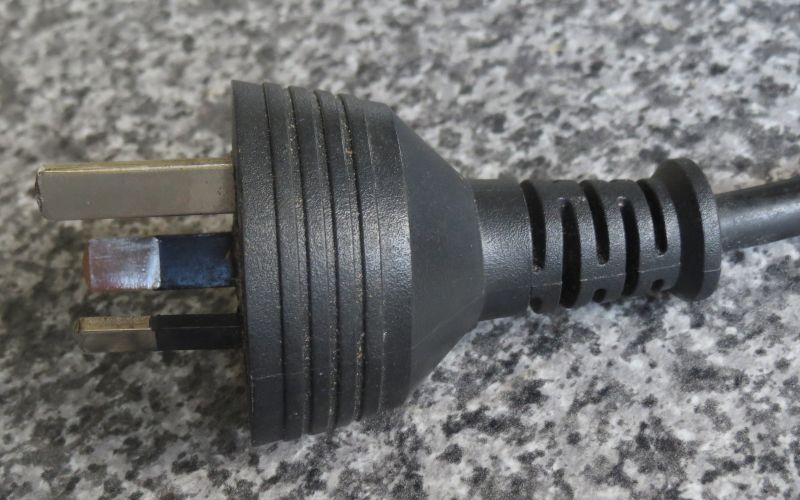

Fan-Jet plug 2.JPG
While no date code is visible, I'm willing to believe it dates from before 2005 (when insulated pins became a requirement of AS/NZS 3112).
Fan-Jet plug 2.JPG (50.94 KiB) Viewed 27885 times

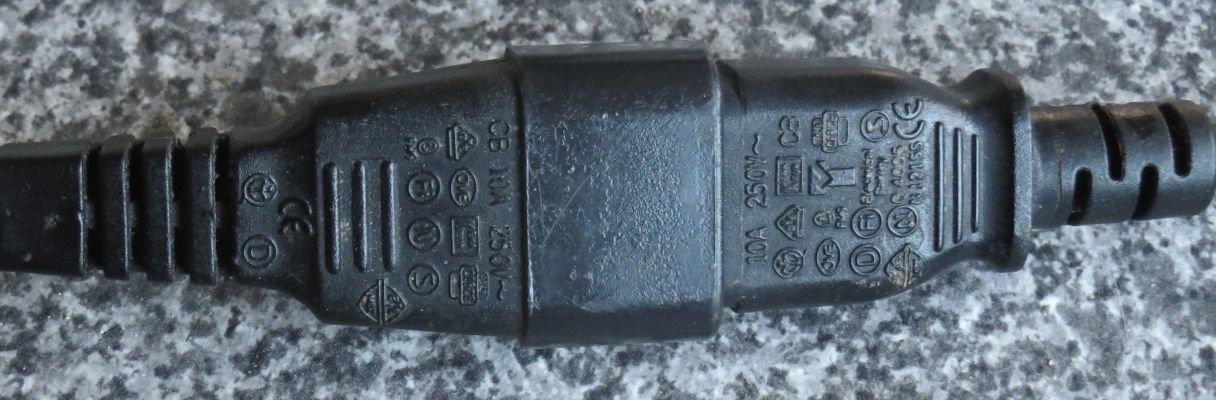

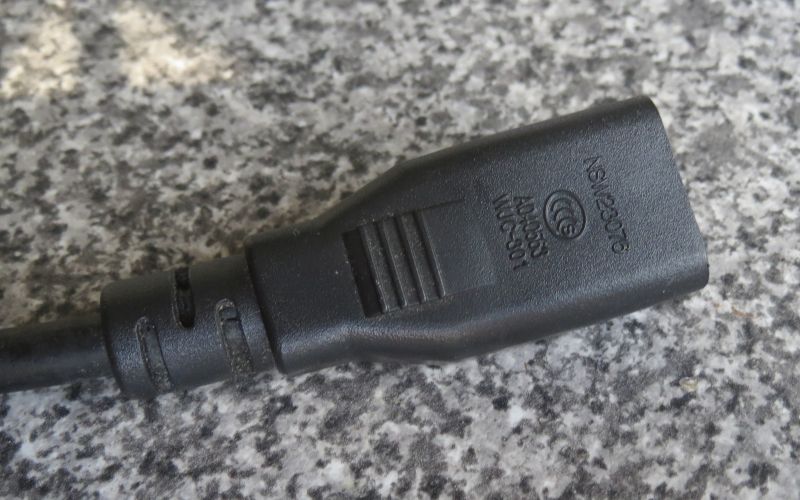

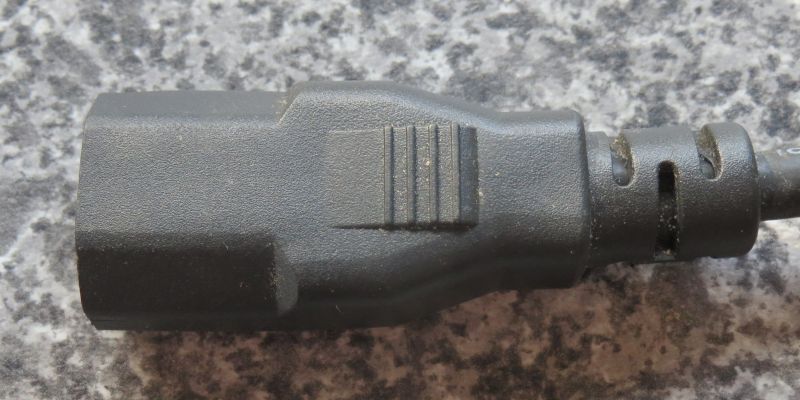

Fan-Jet C13 1.JPG
Fan-Jet C13 1.JPG (70.36 KiB) Viewed 27885 times
Fan-Jet C13 2.JPG
I don't recall seeing that logo on the really bad ones.
Fan-Jet C13 2.JPG (76.85 KiB) Viewed 27885 times

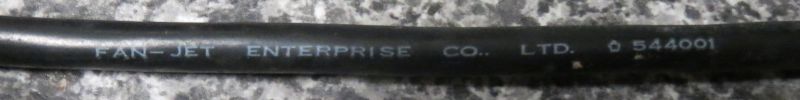

Fan-Jet flex.JPG
Fan-Jet flex.JPG (22.94 KiB) Viewed 27885 times

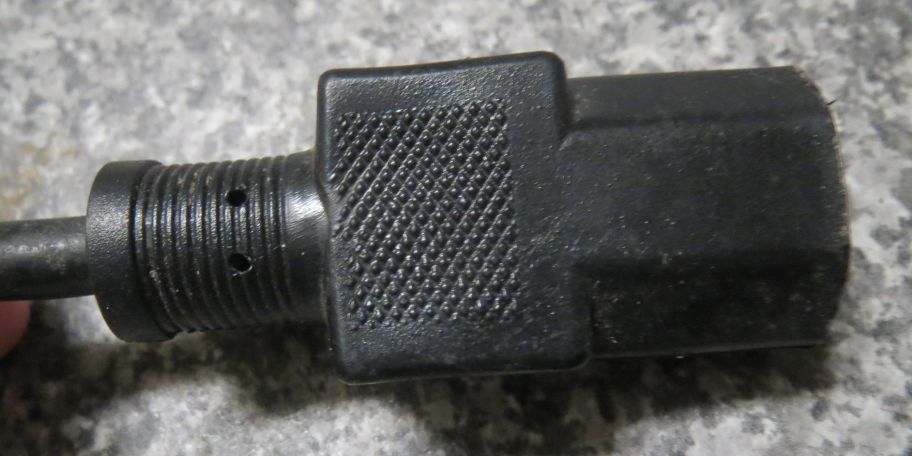

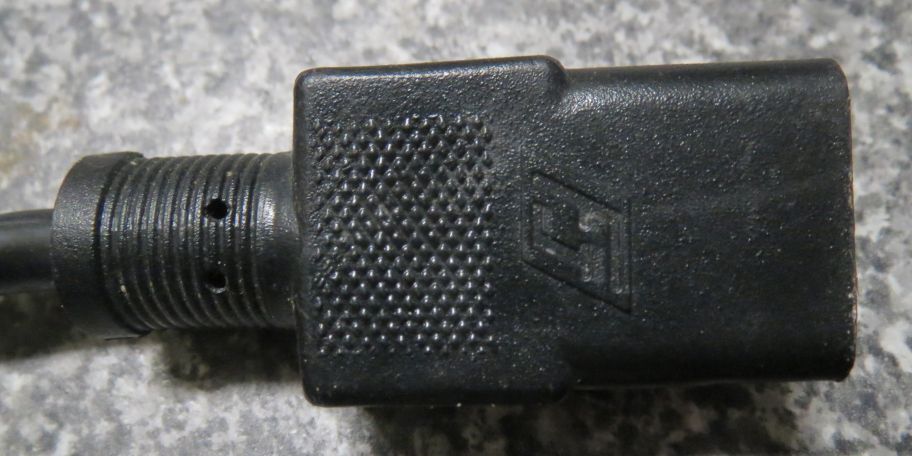

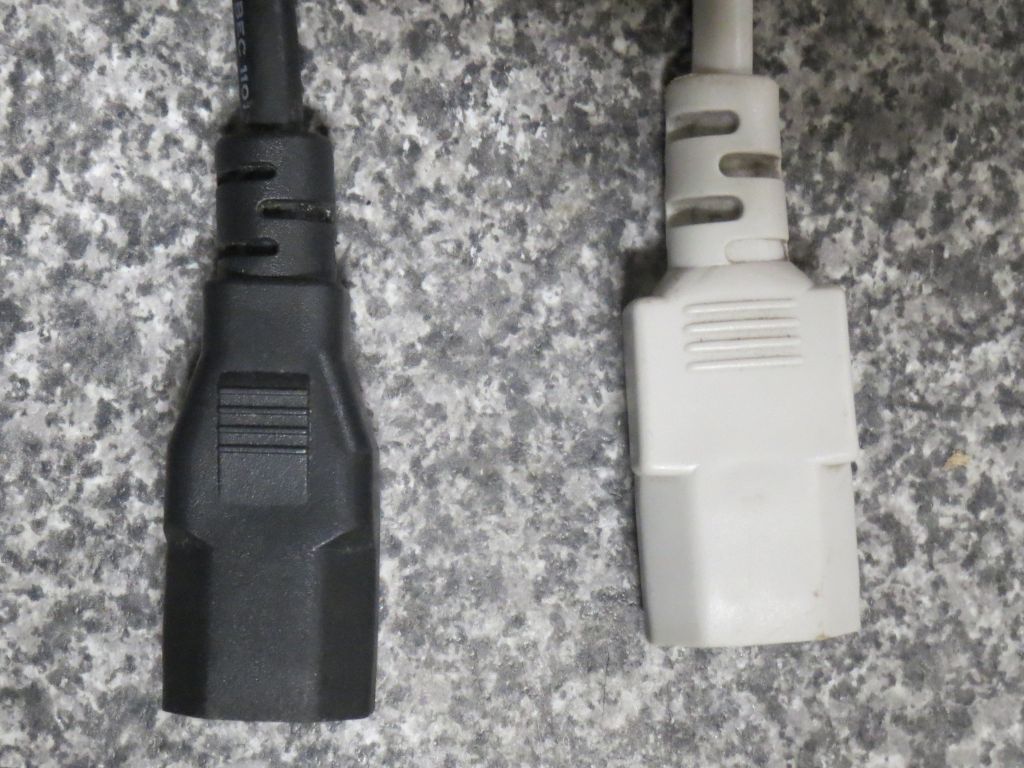

C13 ends (Fan-Jet vs. I-Sheng).JPG
The openings are a bit wider in the Fan-Jet, so I'm still not sure if this is safe.
C13 ends (Fan-Jet vs. I-Sheng).JPG (21.73 KiB) Viewed 27885 times

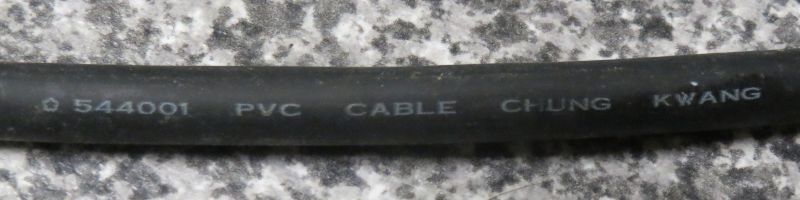

Chung Kwang 544001 flex.JPG
Having stripped the end of this cord, it has the correct IEC colors and (at least in the earth) 20 strands of 0.18mm copper (working out to about 0.5mm², not officially approved for 10A but can just about hold it with good ventilation).
Chung Kwang 544001 flex.JPG (37.23 KiB) Viewed 27885 times
And a not-so-dangerous Fan-Jet cord (one which actually survives 10A, even if it gets quite warm)? The "(star)544001" might even be a standard of sorts, having seen a few cords from different manufacturers with that same code. (The design of the really dodgy "Fan-Jet" cords is nothing alike, for the record.)
